Sunday Blueprint 16" (Gloss Ocean Blue with 15.5" tt in RHD)

The Blueprint 16" is ready to help kids learn to ride.

Sunday's entry-level 16” bikes are fun and easy to use so kids can keep learning. Simplicity and reliability are the goals with the Blueprint. Key details include a seat/post combo in a comfortable level riding position along with an adjustable reach brake lever that can be tailored to each rider. Reliable Odyssey Springfield brakes and Sunday Current v1 tires round out the package.

Key Features

• KMC S1 Chain
• Sunday Badge Seat and Post Combo (new more level position)
• Odyssey Springfield Brakes
• Odyssey Quik Slic Kable
• 13t Odyssey Freewheel
• Sunday Current 16" Tires

Specifications

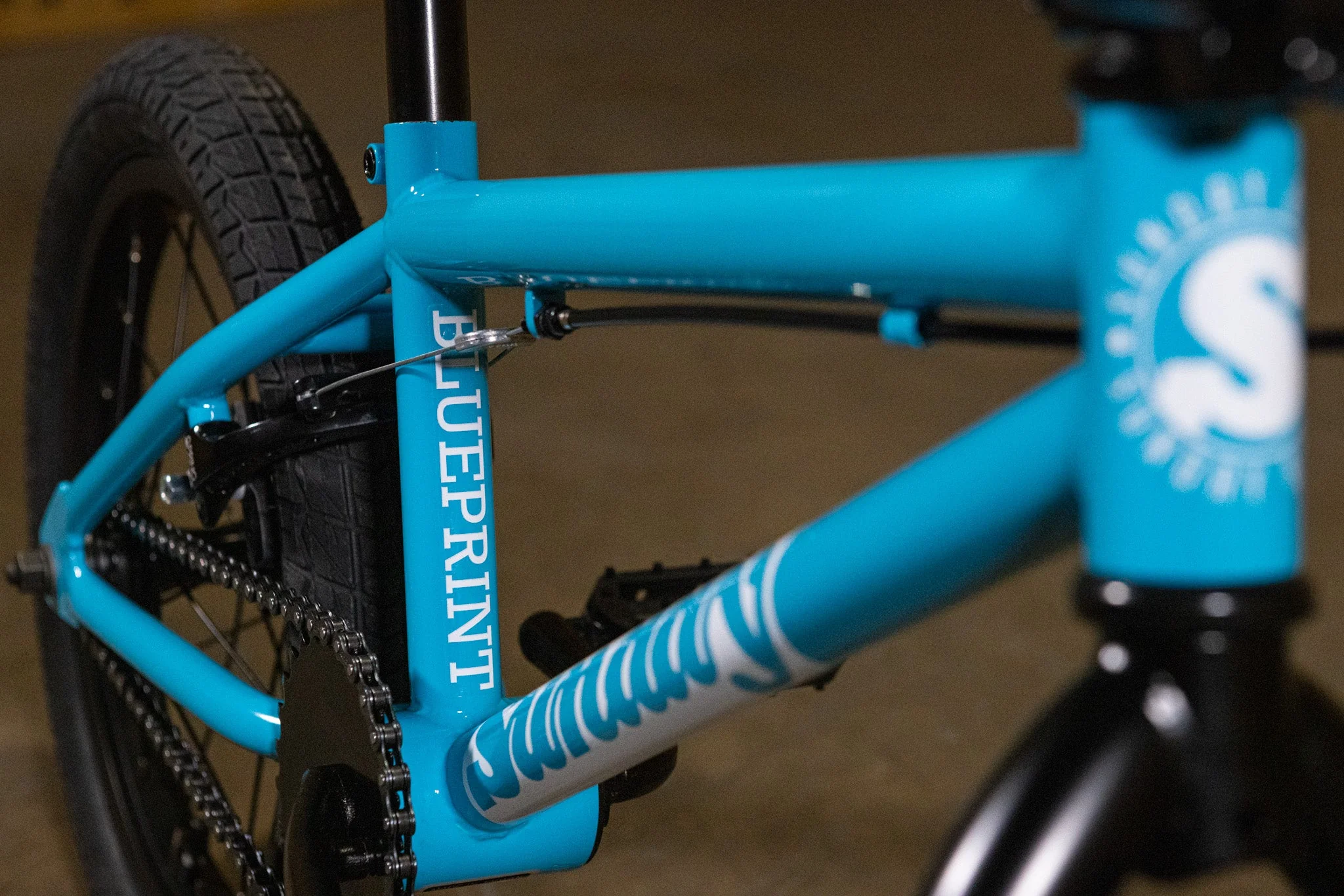

Frame: Sunday Blueprint, 15.5" top tube
Fork: Sunday Blueprint 16" fork w/ 2-piece steerer tube

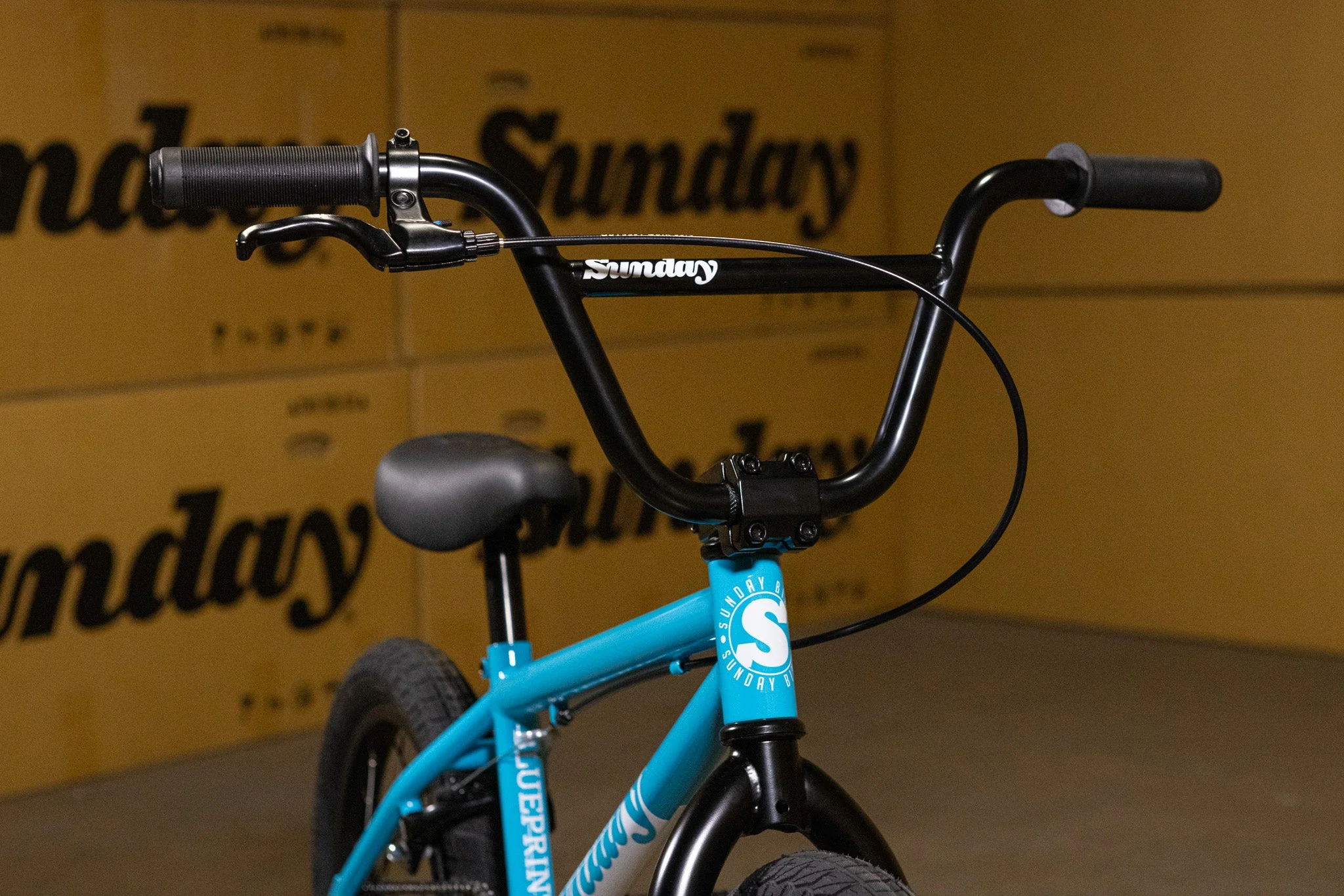

Handlebar: Sunday, 2-piece

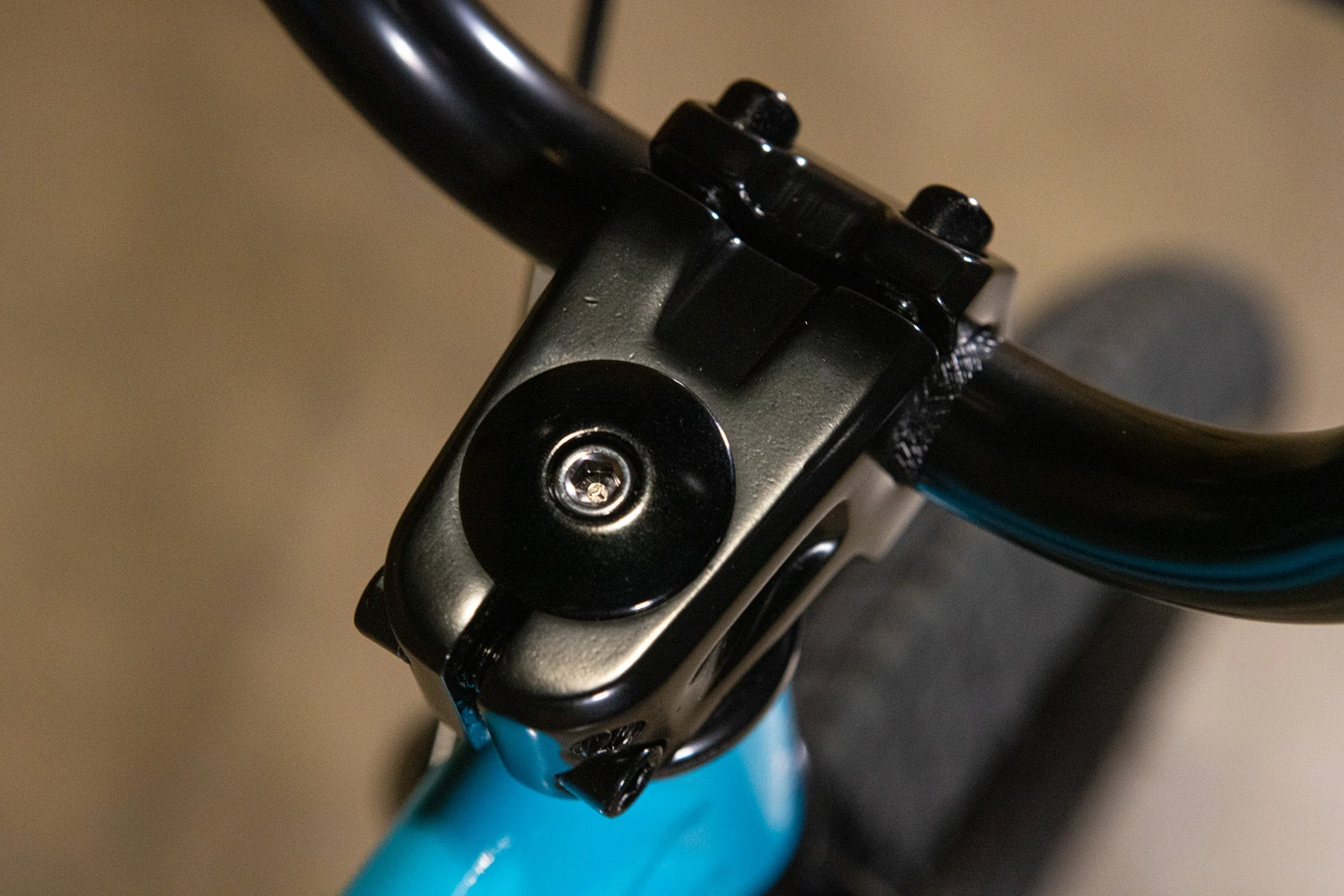

Stem: Front load, aluminum, 40mm
Headset: Traditional 1-1/8"
Alloy Cap: Aluminum cap w/ star nut

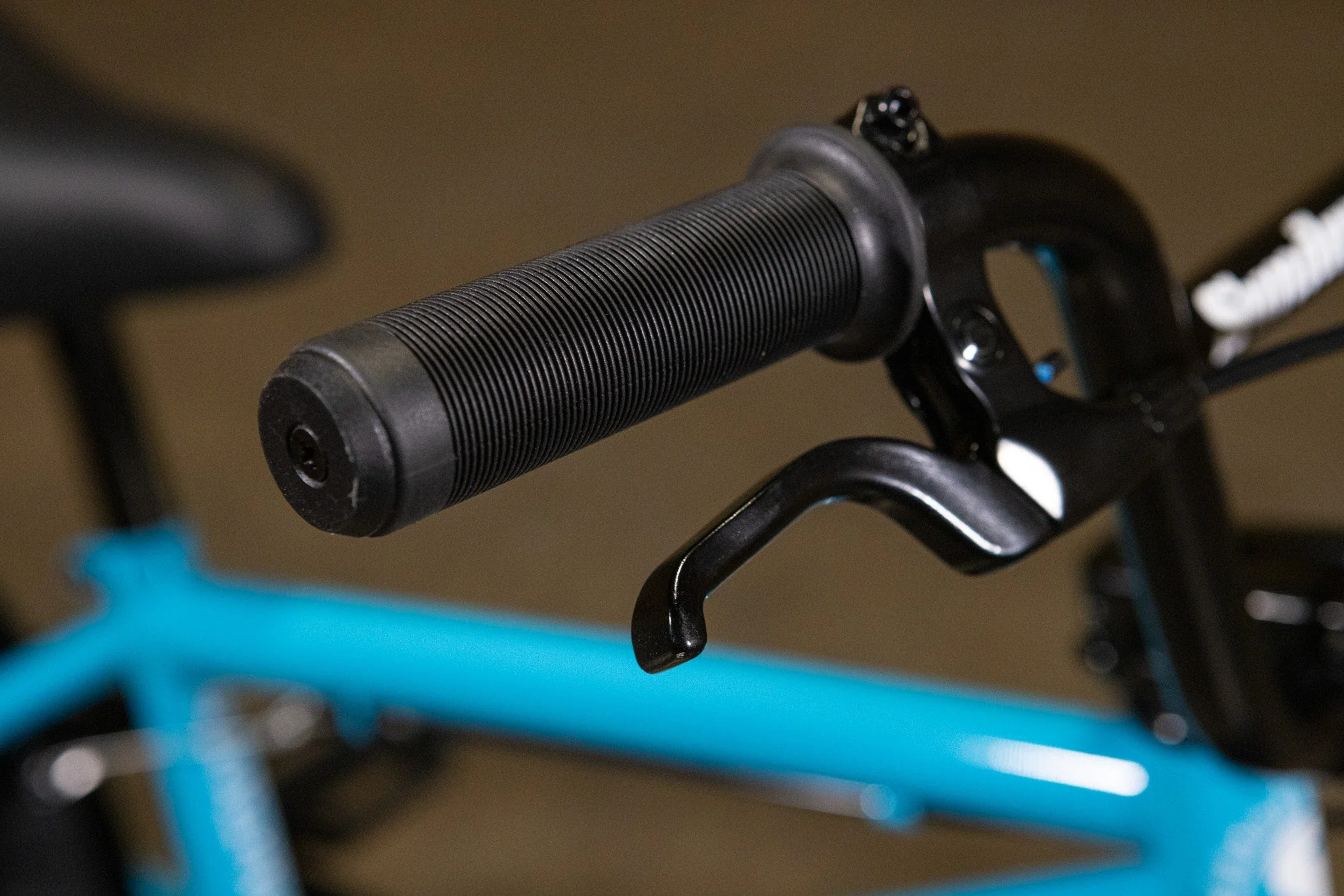

Brake Lever: Junior Aluminum, Short Reach, U-brake compatible

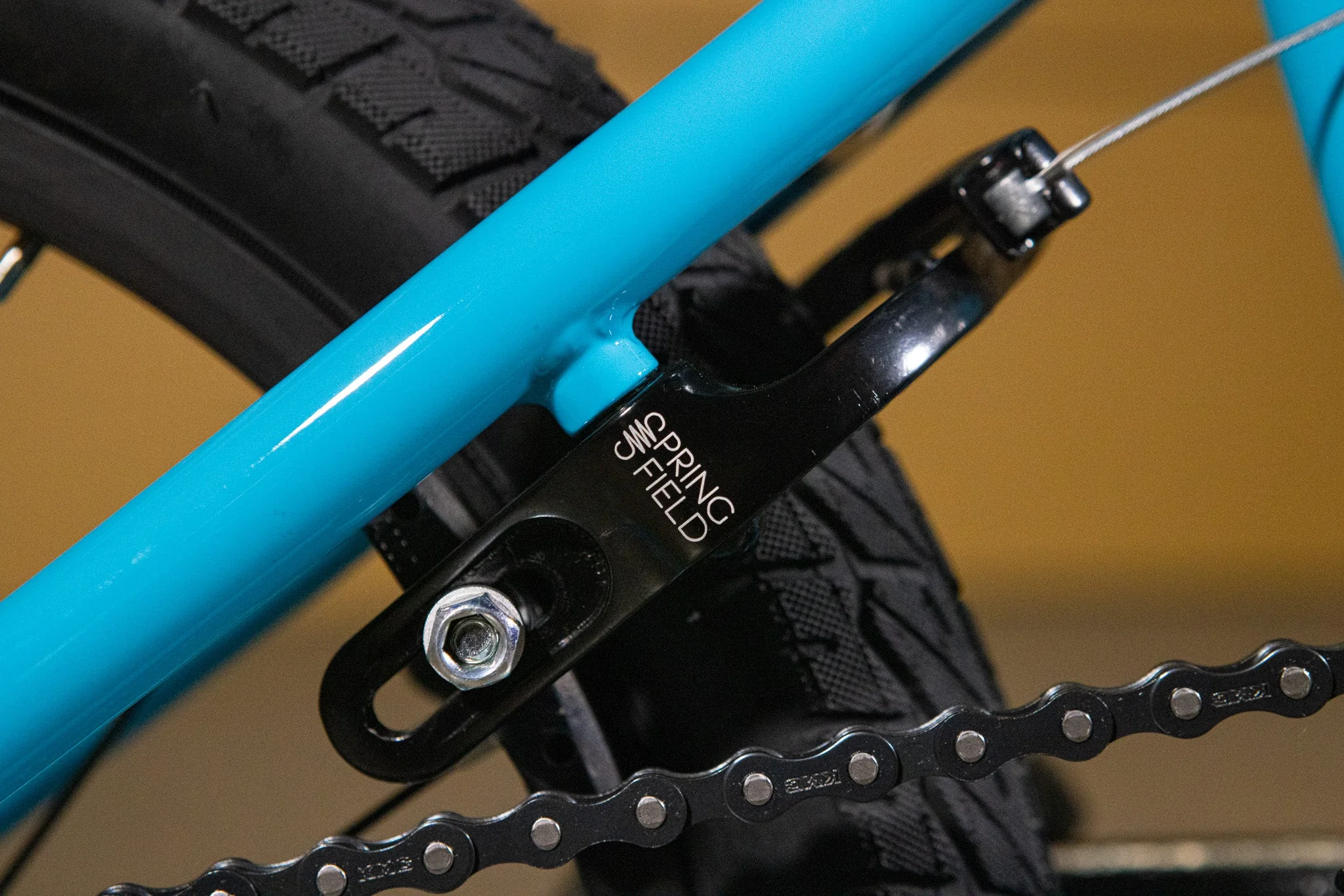

Brakes: Odyssey Springfield U-brake

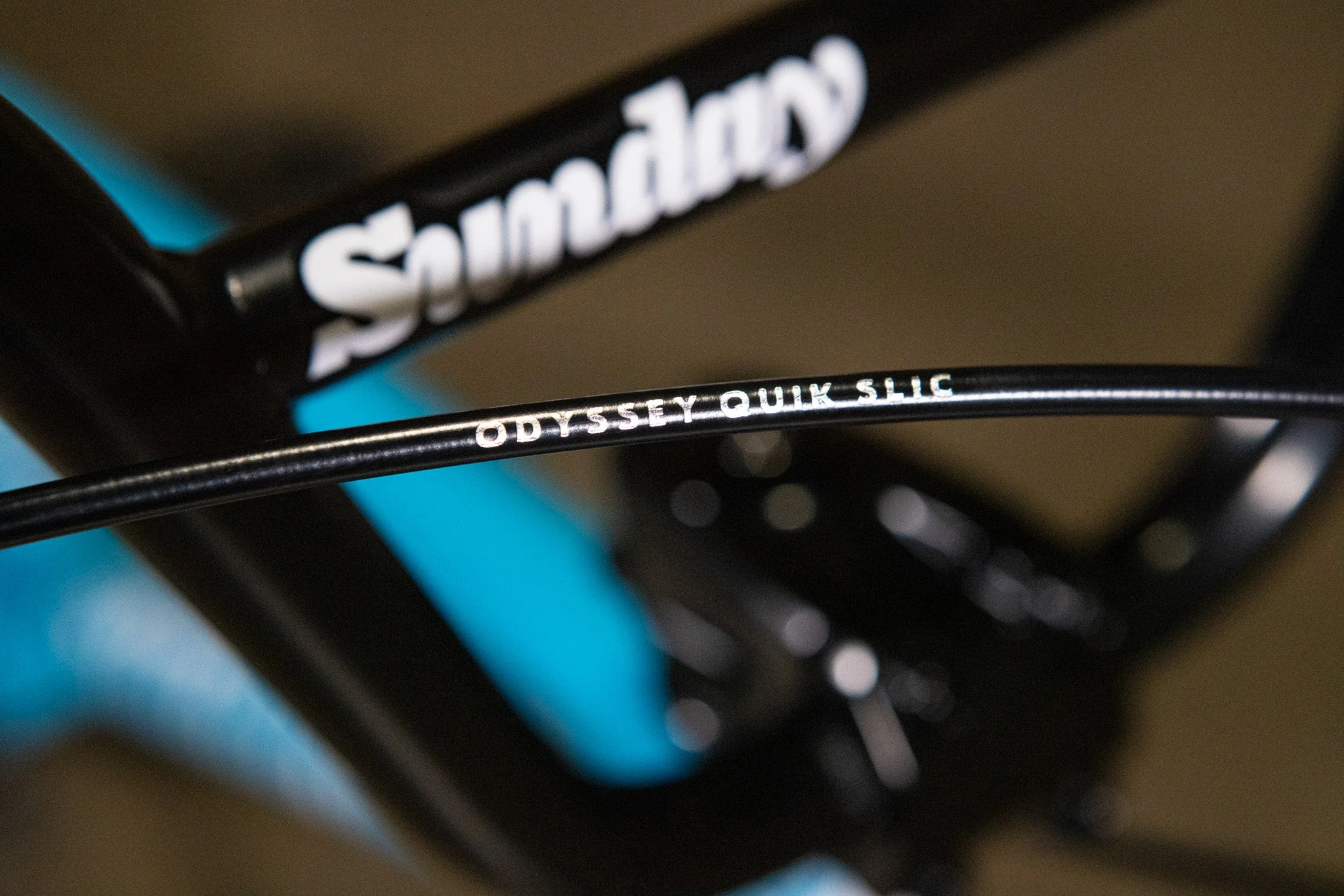

Brake Cable: Odyssey Quik Slic
Grips: Velo Junior

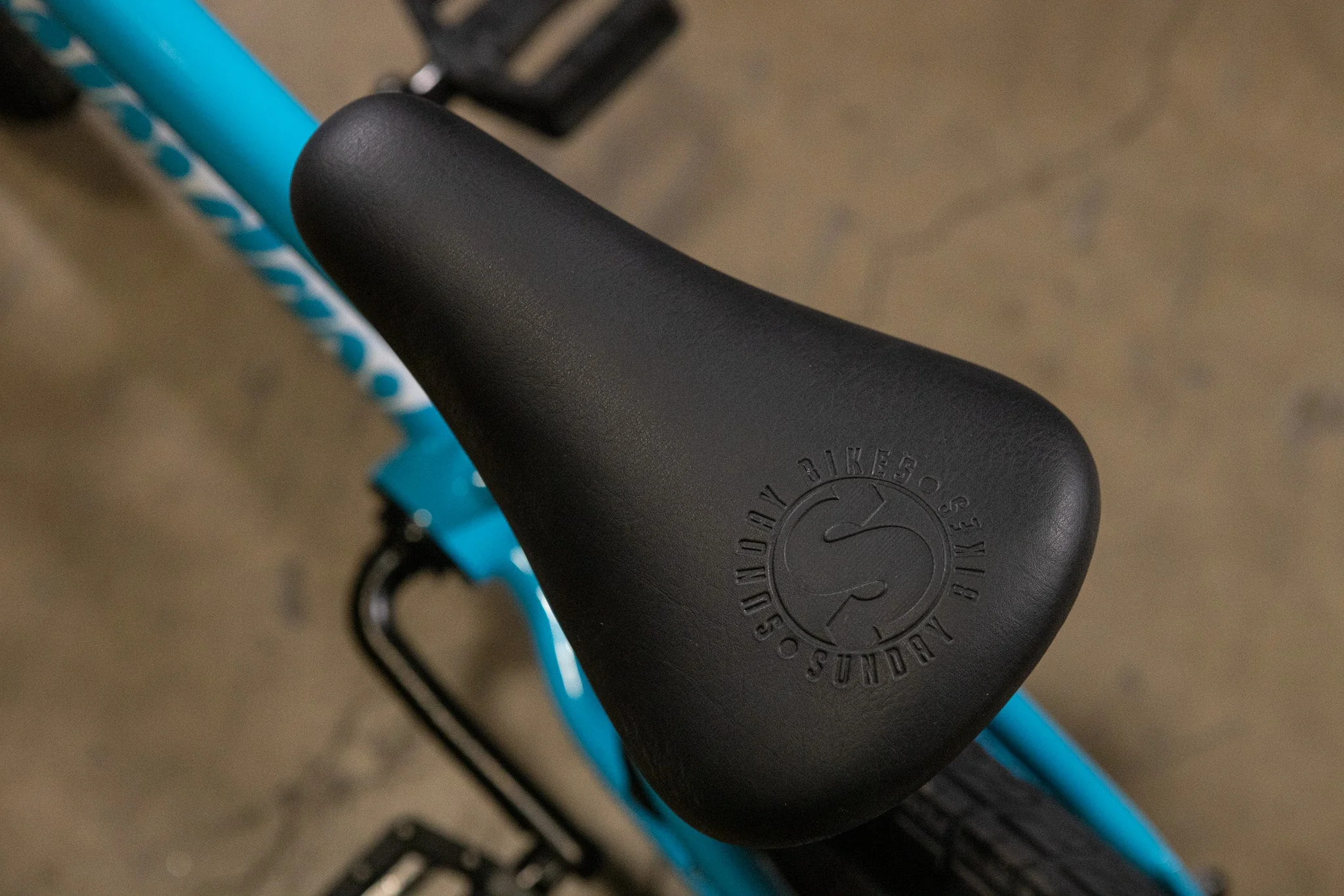

Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Integrated

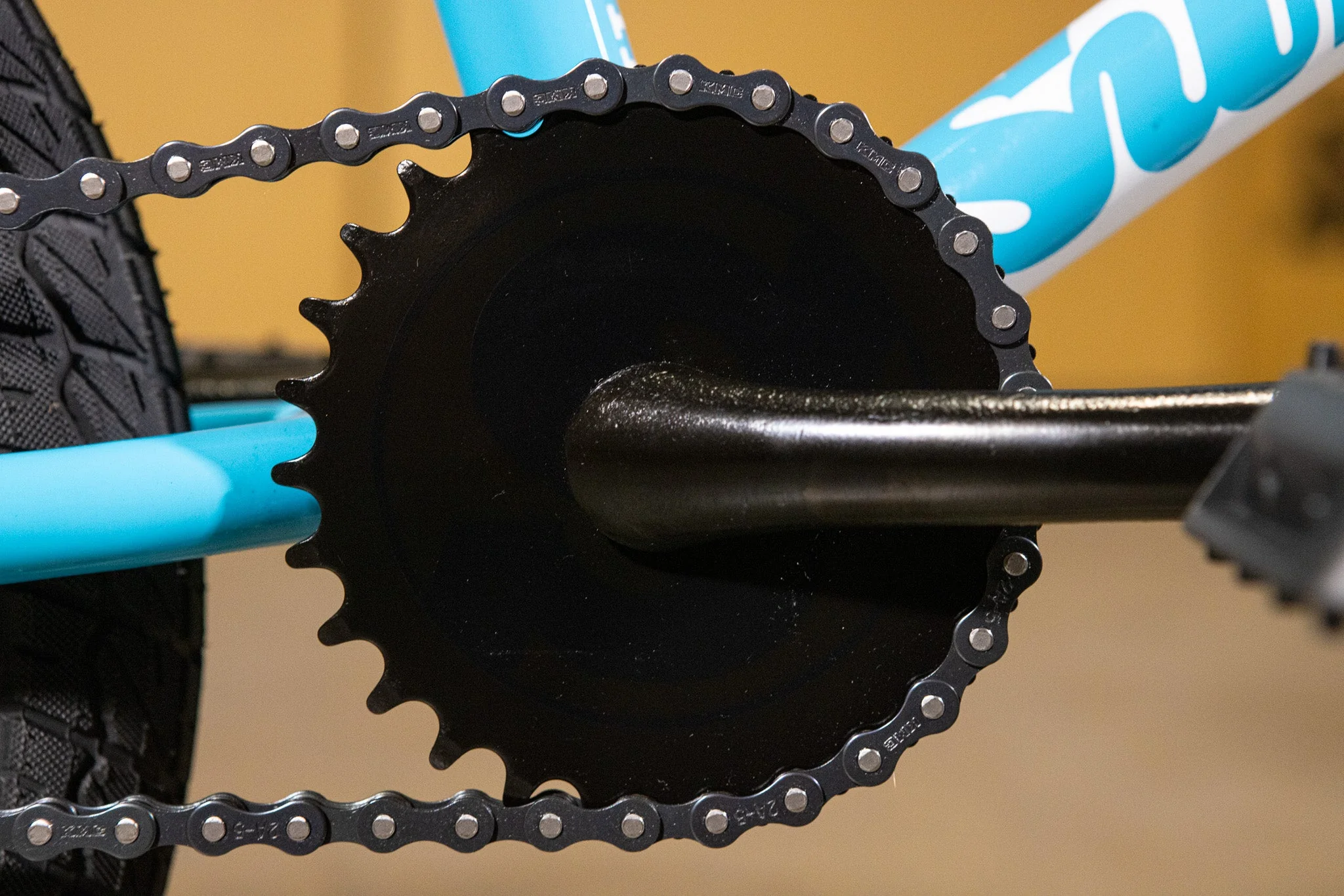

Sprocket: Sunday S-Logo, 28-T, steel
Cranks: 115mm, 1-piece
BB Parts: Loose-ball, American, 19mm

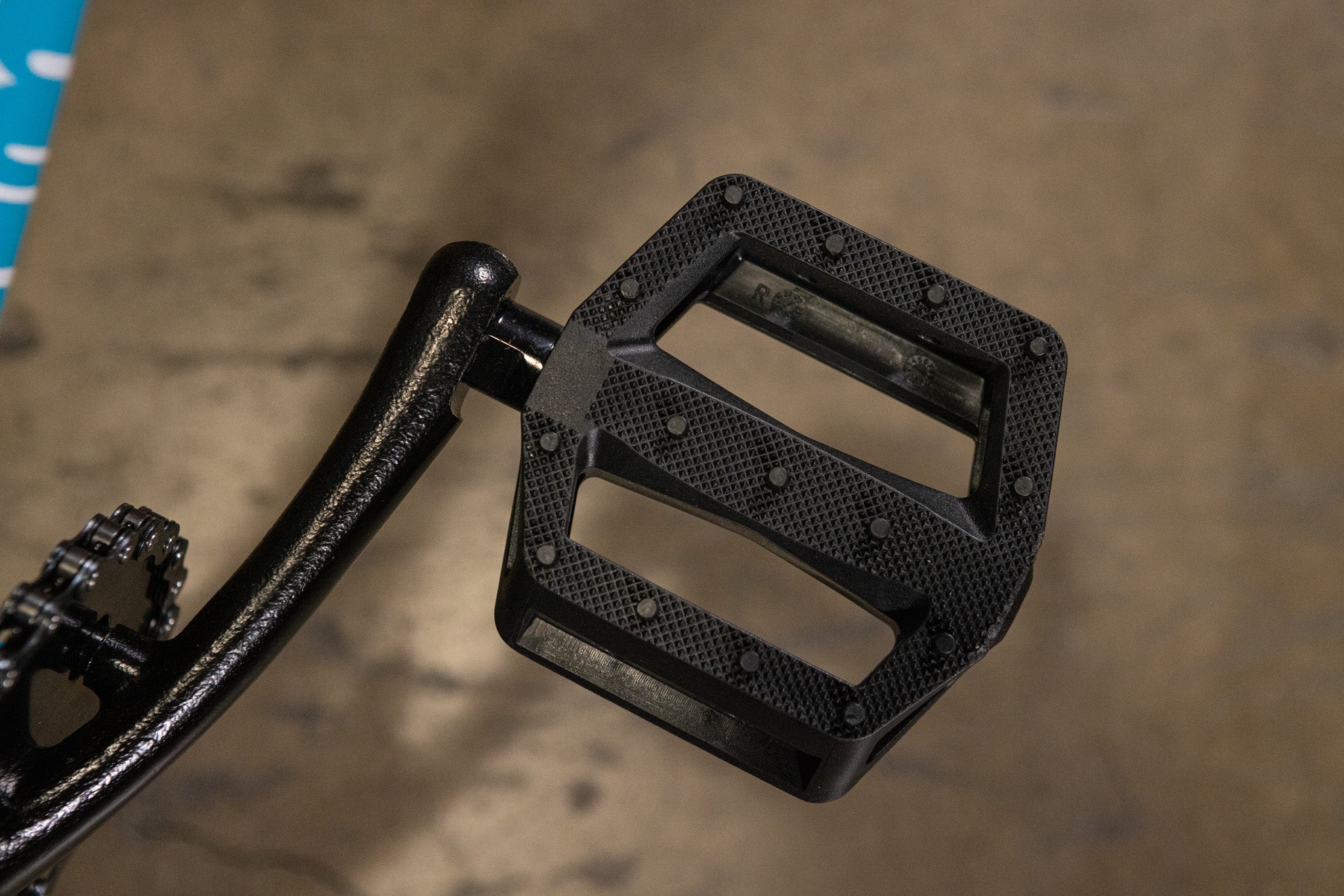

Pedals: FPD Junior platform, plastic
Rims: P-7X aluminum, 16", 20H
Front Hub: 20H, low-flange, loose-ball, 3/8" axle
Rear Hub: 20H, loose-ball, 3/8 axle w/ Odyssey 13T freewheel
Spokes: 14g steel, black
Tires: Sunday OEM, 16 x 2.20" (F & R)
Chain: KMC S1
Approx. Weight: 21.73lbs (with brakes)

Frame Geometry

Top Tube Length: 15.5"
Head Tube Angle: 73.5°
Seat Tube Angle: 71°
Chainstay Length: 11.25"
Bottom Bracket Height: 9.25"
Standover: 6.9"

Handlebar Geometry

Rise: 6.75"
Width: 23"
Backsweep: 12°
Upsweep: 1°
