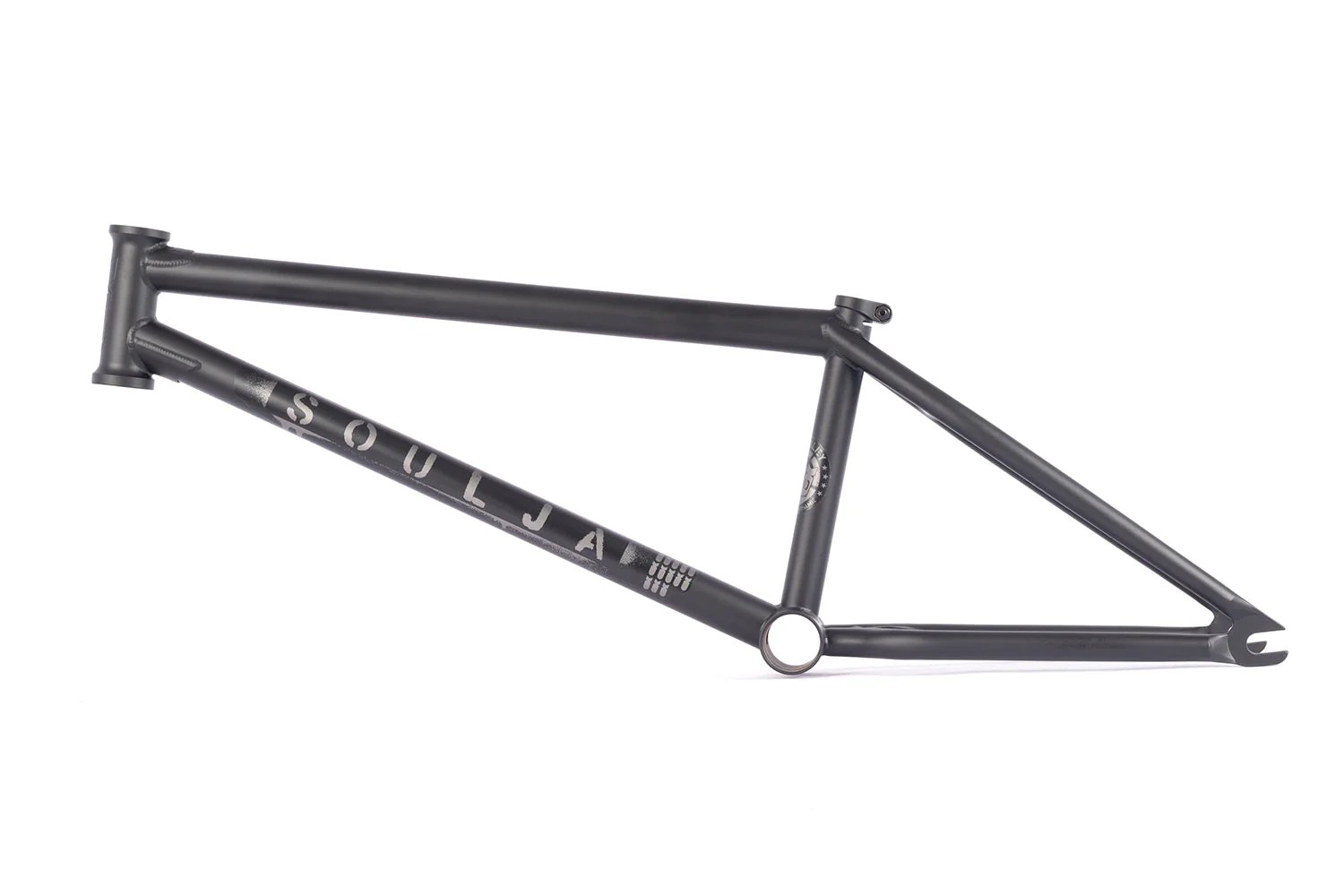

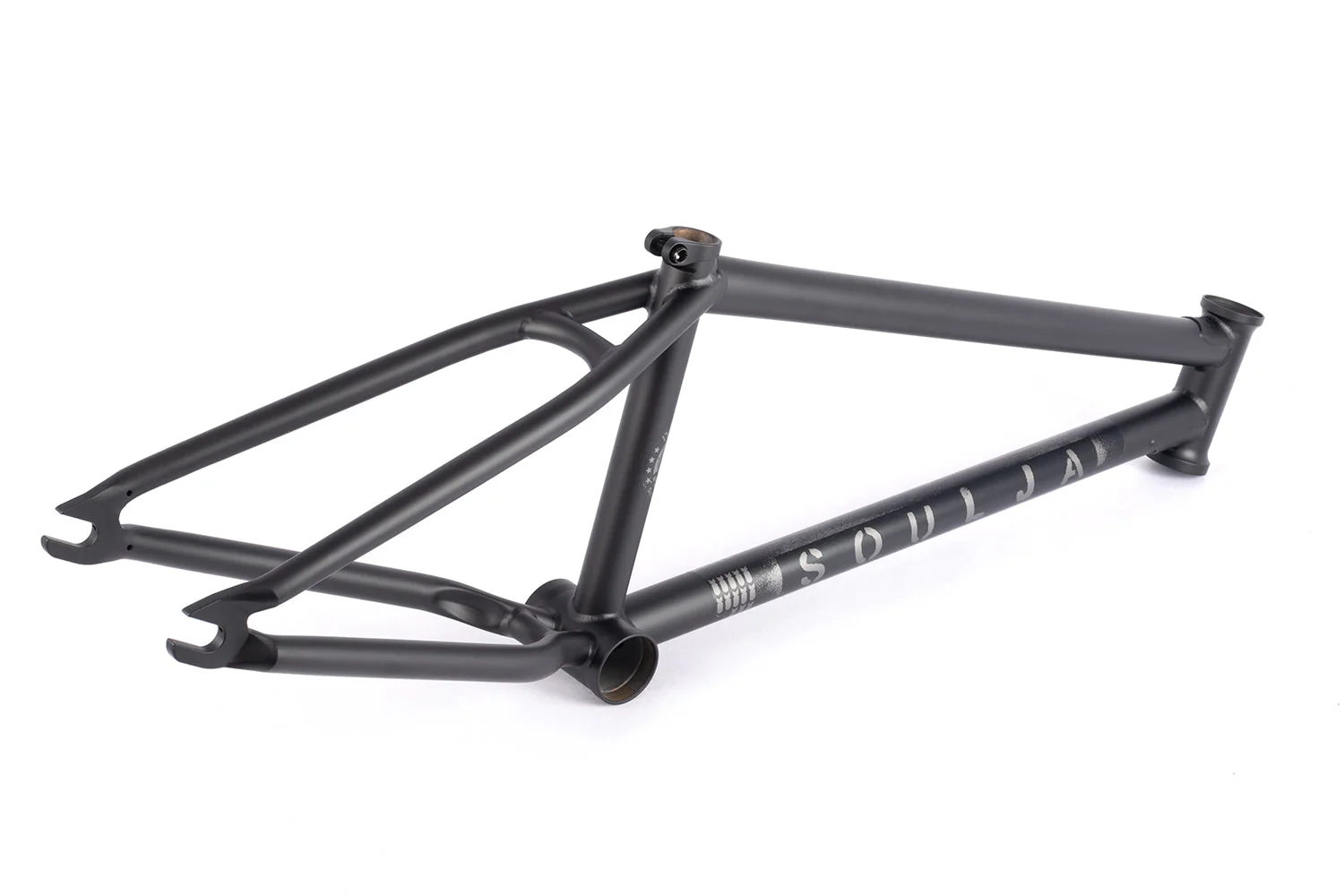

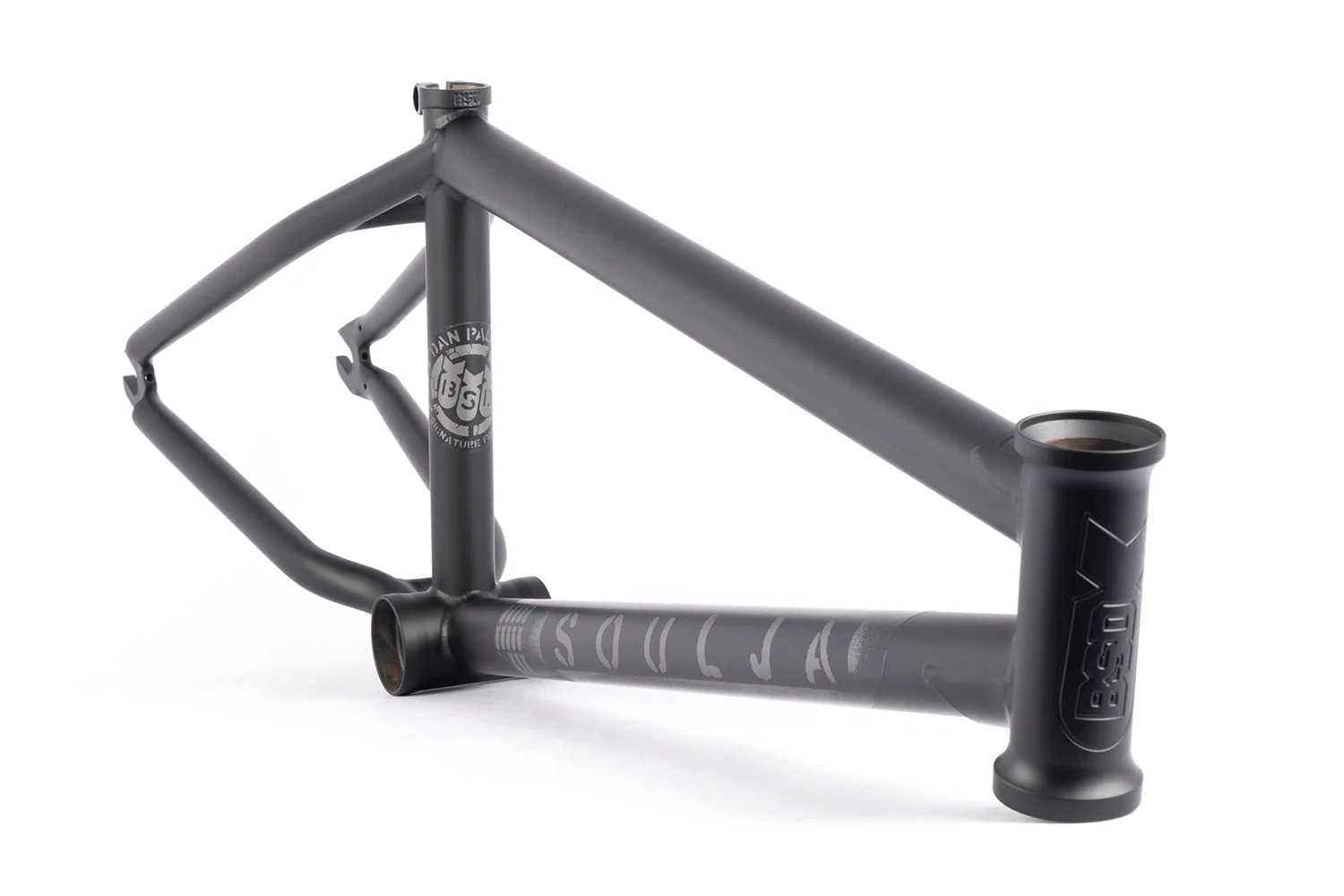

BSD Soulja v4 Frame (Flat Black)

The latest version of Dan Paley's signature Soulja frame, updated using our new Superscoop chainstay tubing for extra tire clearance when your wheel is slammed. This frame features a 75.2 degree headangle, 8.8” standover, 12.8 – 13.2” rear end and invest cast dropouts with built in chain tensioners.

Features

• Dan Paley signature
• Sanko Japanese seamless 4130 CrMo triple butted tubing

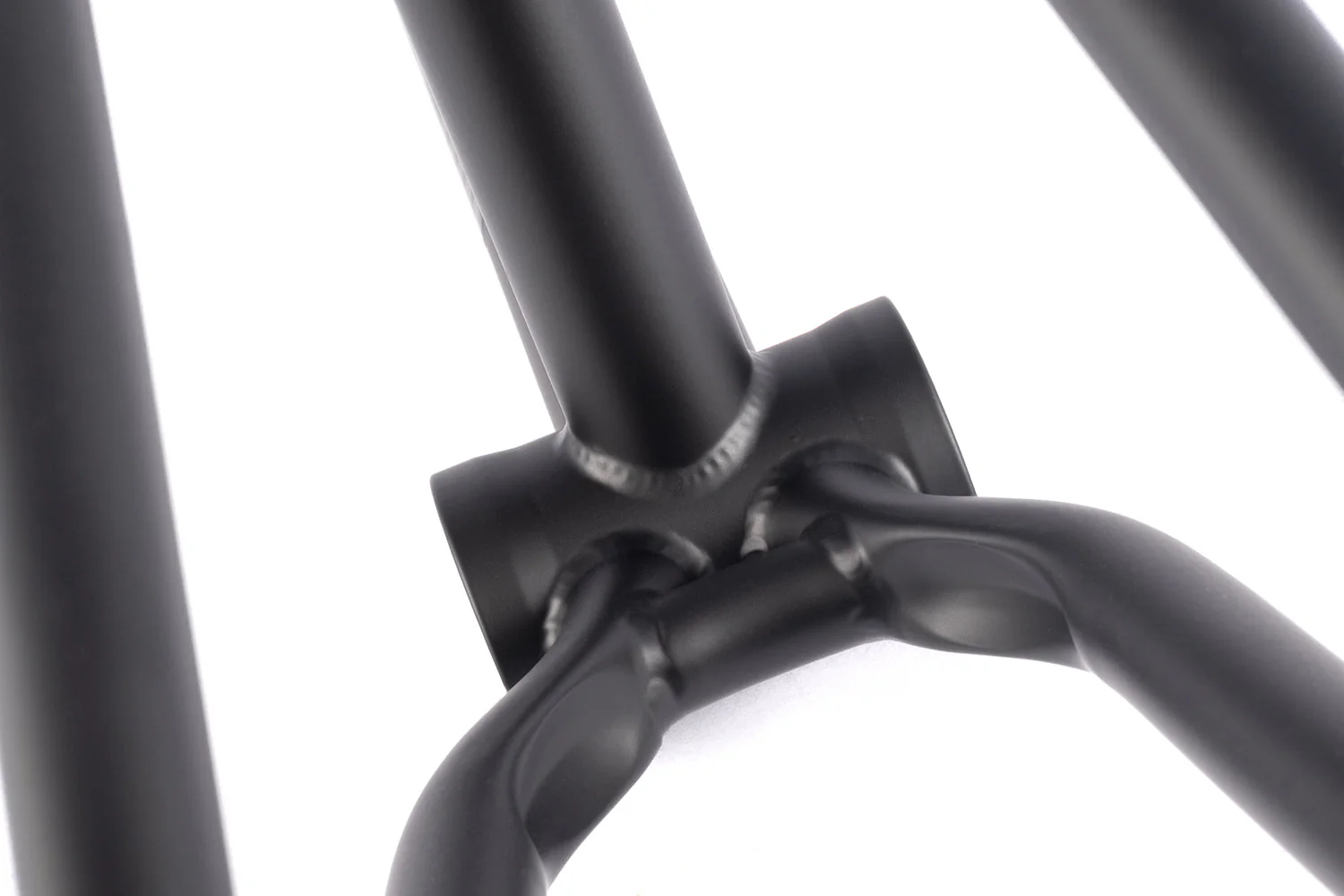

• Superscoop Chainstay: Our new Superscoop chainstay provides more tire clearance for when your wheel is slammed. The tubing is press formed post bending to create extra room where it's needed most without the need for an invest cast yoke.
• Invest Cast Dropouts: The dropout is cast as one piece, much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there are integrated chain tensioner bolts inside.
• Integrated Seatclamp: The seatclamp is built into the frame so there's no need for a separate clamp. This keeps the frame clean and simple while also allowing the seat to be slammed lower. Also the slot cut beneath the seatclamp gives more clamping power less torque on the bolt.

Top Tube Lengths: 20.6", 20.9", or 21.2"
Head Tube Angle: 75.2°

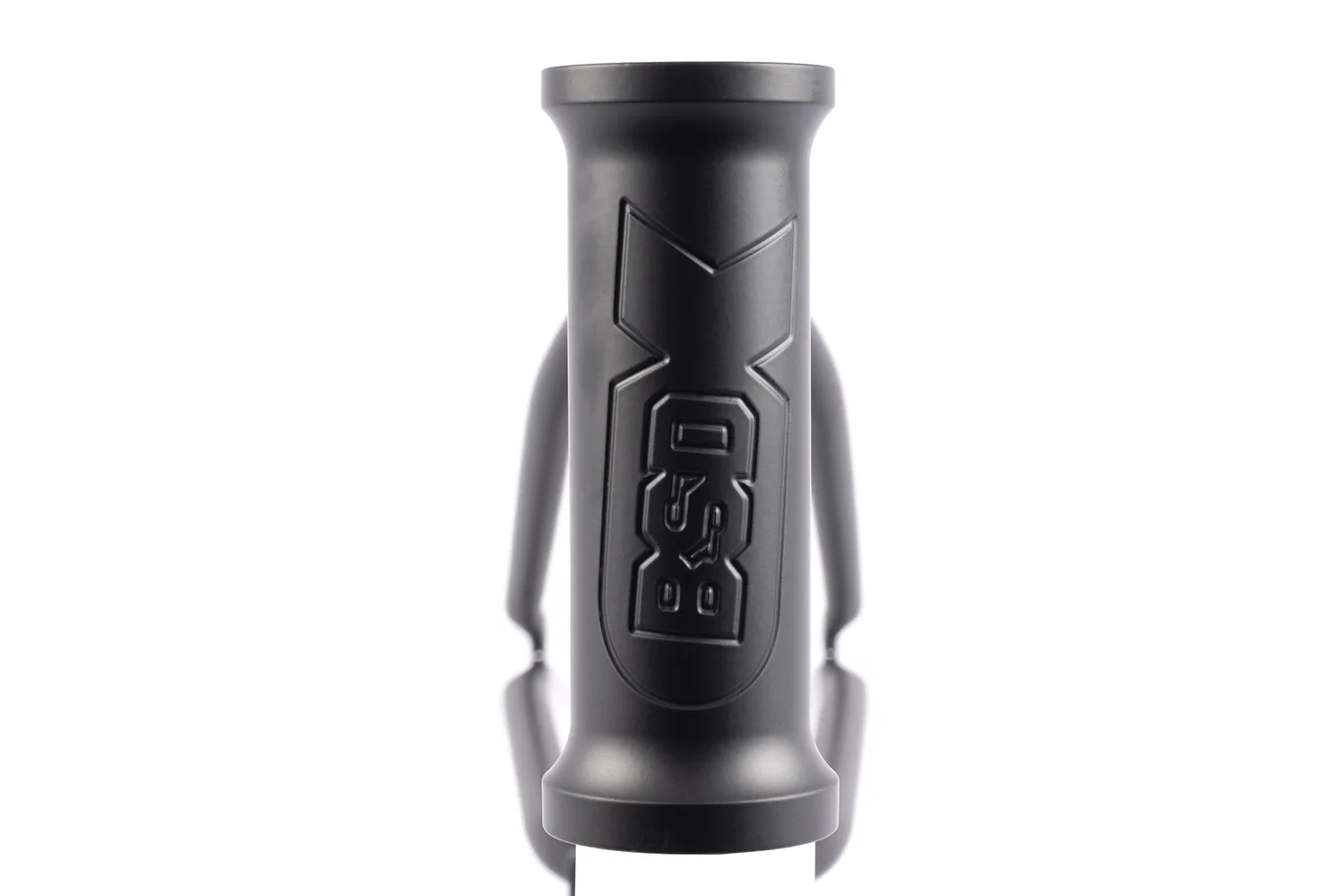

Head Tube Length: 117mm
Seat Tube Angle: 71°
Chainstay Length: 12.8-13.2"
BB Height: 11.7"
Standover height: 8.8"
Weight: 5lbs.
Brake mounts: None (Brakeless)
